CONSISTING:

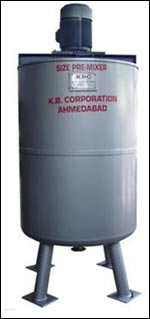

• "KBC" Size Pre-Mixer is the most revolutionary system available today to effectively prepare size mixtures of finest quality, utilizing the principle of high shear action in heavy viscous media.
• The secret of the process is the designs, the special plate type impeller and the transmission of high horse-power to the impeller shaft, so that complete homogeneous emulsion takes place at all phases of the size conversion during the size preparation.
• In the preparation of warp size mixtures, using the "KBC" Size Pre-Mixer the action of the impeller is transmitted to high hydraulic shear of particle against particle in the size batch being processed and complete deagglomeration of the size ingredients and the greater the viscosity of the emulsion, the finer is the processing action in deagglomeration. At the same time, physical shear is also acting in shattering the starch globules and result in complete conversion of the starch emulsion.


FEATURES:

• Perfect and homogeneous emulsion of the size mixture.
• Complete dispersion and deagglomeration all size ingredients, including waxes, tallow and additives.
• Economy of time and labour.
• Almost no maintenance cost.

• Size Pressure Cooker consists of a pressurized insulated stainless steel shell suitably lagged with glass wool and covered with stainless steel sheet.
• It is provided with a stainless steel agitator run by Motor and Reduction Gear for stirring.
• Direct and Indirect heating stainless steel coils are provided for cooking the Size.


FEATURES:

• High temperature and pressure with stirring prepare even size mixture in short time.
• Viscosity and evenness of the Size is maintained for a long period.
• It increases the efficiency of Sizing.
• It saves labour, time and steam.
• Serves the purpose of preparatory stand cooking vessel and storage vessel.
• Available in different capacity as per requirement.

• Size Storage Vessel consists of a insulated stainless steel shell suitably lagged with glass wool and covered with stainless steel sheet.
• It is provided with a stainless steel agitator run by Motor and Reduction Gear for stirring.
• Indirect heating stainless steel coil is provided to maintain Viscosity of the size.

• Viscosity and evenness of the Size is maintained for a long period.
• It increases the efficiency of Sizing.
• It saves labour, time and steam.
• Serves the purpose of preparatory stand and storage vessel.
• Available in different capacity as per requirement.

KBC Size Transfer Pump / Positive Gear Pump

CONSISTING:

• 2" size flange end to transfer the size.
• Stainless Steel working parts to avoid corrosion.
• 2HP. Electric Motor.

• For transferring the Size from Size Pressure Cooker & Size Storage Vessel.
• Save time Density of the Size during the transfer remain unchanged.
• Simple, Efficient & Economic Design.
• Easy to maintain.
• High efficiency.
• Low noise.
• Reliable & low cost.
• Ideal for Textile & Chemical Industry.

KBC Make Centrifugal Pump

CONSISTING :

• S.S. 2" size Centrifugal Pump with 5 H.P. electric motor.

KBC Make Water Counter Meter

CONSISTING OF:

• One No. water flow meter 50 mm. with “0" setting function with flange end
• One No. Water Counter/Controller Unit digital type.
• One No. Pneumatically operated 2" size S.S. ball valve with actuator.
• One No. Pneumatic panel to operate above valve.

KBC Make Automation Sizing Equipments

CONSISTING OF:

• One No. Complete in assembled condition Electronic/pneumatic Panel Consisting of following:
• Starter to operate Two Speed Electric Motor of Size Pressure Cooker.
• Starter to operate Two Speed Electric Motor of Size Storage Vessel.
• Starter to operate positive gear pump.
• Starter to operate centrifuge pump.
• Necessary Amp. Mt. , Main Switch etc.
• One No. Temp. Indicator/ Controller panel with 1" size S.S. pneumatically operated Boll Valve for Size Pressure Cooker.
• One No. Temp. Indicator/ Controller panel with 1" size S.S. pneumatically operated Boll Valve for Size Storage Vessel.
